Ol Ins na Aut bilong Indastriel Robot Han

Ol Ins na Aut bilong Indastriel Robot Han

Olsem ol otomatik operesenel ikwipmen we ol i save putim long ol indastrial envairomen, indastrial robotik han i gat tripela o moa programable motion axes.

Em i mekim na ol i ken senisim ol tul o wokpis long mekim ol wok bilong wokim ol samting olsem weldim, spreim peinting, putim long palet, putim/anlodim na bungim ol masin tul.

1. Ol Difrens Namel Long Ol Indastrial Robot Han na Ol Robot Bilong Wok Wantaim

Ol robotik han bilong indastriel i gat ol spit bilong wok hariap na strongpela strong bilong paitim, ol i wokim bilong spit, hevi 'payload' na wok long kamapim planti samting. Ol i mas stap klostu long ol banis bilong separetim ol man na masin, na dispela i mekim na ol man-robot i no inap wok bung wantaim.

Ol robot we i save wok bung wantaim i gat ol 'built-fos sensa we i gat gutpela 'collision detection', we bai stop hariap taim ol i toktok wantaim ol wokman. Maski spit na 'payload capacity' bilong ol i no gutpela, ol i no nidim ol 'safety fence' na ol i ken wok wantaim ol opereta long wankain wokstesen.

2. Ol Difrens long Pefomens Paramita

Ol gutpela samting bilong ol robotik han bilong indastri: spit bilong wok, hevi pailod na longpela mak, i gutpela long wokim planti samting oltaim.

Ol gutpela samting bilong ol robot we i save wok bung wantaim: hevi bilong en i no hevi tumas na i no hat tumas, tasol i no gat planti spit na i no gat planti wok, em i ken wok tasol long wokim ol liklik samting na ol liklik wok.

3. Ol Prodaksen Scenario we i ken kamap

Ol robotik han bilong indastriel: ol wok bilong hai-saiklon na hevi-lod we i gat wok bilong weldim, putim ol hevi samting long palet, stampim, na lukautim masin.

Ol robot we i save wok bung wantaim: ol liklik hap bilong bungim, sekim, polisim, lait hanling, na fleksibel wokim wantaim ol liklik lain na kain kain prodak.

Ol robotik han bilong indastri i gat wanpela 'serial link structure'. Wanpela strongpela beis i stap strong long graun, wantaim planti ol masin link na ol 'rotary joints' we i pas long pinis bilong - i go long pinis bilong -, na i go inap long han na long 'end tool flange'. Planti bilong ol robot han we i stap long maket i save bihainim dispela 'serial design'; i gat liklik namba bilong ol 'parallel robot' tasol i no gat planti samting we inap long kamap, we bai yumi stori long en bihain. Wanwan join i gat wanpela 'motion axis' we yu ken bosim, na ol standet model i gat 6-pela 'axis' we i gat nem J1 i go inap J6.

Ol 6-pela 'axes' i stap long tupela grup: Namba wan tripela 'axes' J1 (as), J2 (solda) na J3 (elbo) em ol 'positioning axes'. J1 i save tanim olgeta han i go long lephan na raithan, J2 i save tanim han daunbilo i go het na i go bek, na J3 i save apim na daunim han antap. Taim ol i wok wantaim, ol i ken muvim han i go long wanem hap insait long envelop bilong wok.

Ol narapela tripela 'axes' J4, J5 na J6 i stap insait long han olsem ol 'orientation axes'. Ol i ken rolim, tanim na tanim 'end tool' bilong stretim wantaim ol wokpis long wanem sait.

Long tok isi: tripela 'axes' i makim ples bilong tul, na narapela tripela i stretim 'position' bilong en. Sikspela 'axis' i makim liklik konfigurasen we i mas i stap bilong putim na stretim wanpela tul fri long wanem hap na wanem angle insait long spes, na dispela i as na '6'-'aksis robotik han em i nambawan rot bilong wokim ol samting long faktori.

Bihain long ol i daunim ol kategori bilong ol model olsem 6-eksis robotik han, ol robot we i wok bung wantaim na ol robot we i save wokim ol palet, ol spesifikesen pepa i stap olsem as bilong skelim wok bilong wanwan model. Ol 'nominal parameters' we ol 'manufacturers' i givim em ol 'optimal values' we ol i kisim aninit long gutpela 'operating conditions', we planti taim i save haitim ol bikpela 'operational limitations' na inap long kamapim rong model seleksen.

Faivpela bikpela samting i save makim stret wok bilong ol han bilong ol robot: 'rated payload', 'working radius', 'repeat positioning accuracy', 'cycle time', na 'degrees of freedom' (namba bilong ol 'axes'). Tru tumas, 'payload' na 'working radius' i save pasim tupela; ol i mas mekim wanpela bikpela wok painimaut na noken skelim wanpela paramita tasol.

1. Payload

taim yu wok long spit wantaim standet mak, na i no gat bagarap long pefomens o lus bilong sevis laip. Ol bikpela hevi yu mas abrusim taim yu makim model

Noken kalkulim tasol. Em i makim mak bilong hevi we wanpela han bilong robot inap long karim gut bihain long hevi bilong wokpis yet; olgeta hevi bilong End-of-Arm Tooling (EOAT) i mas go insait, wantaim ol samting olsem ol 'gripper', 'vacuum suction cup', ol 'quick-change' divais, ol 'sensor' na ol 'cable'.

Tupela bikpela samting



Ol i save makim 'payload' we ol i makim long 'standard load center of gravity' na 'mounting offset distance'. Ol hevipela tul o senisim senta bilong graviti bai daunim trupela lod kapasiti. Oltaim sekim 'payload-reach curve na noken dipen tasol long 'nominal payload value' we ol i tokaut long en.

 Wanpela sefti mak bilong 20% ​​i go inap 30% i mas stap taim ol i makim model bilong daunim 'inertia' long taim bilong 'acceleration' na 'deceleration' na tu long inapim ol wok bilong stretim ol tul long bihain taim. Wanpela peilod we i inapim ol wok rikwaemen tasol i soim olsem wanpela spesifikesen i no bikpela tumas.

2. Maksimum Reach

Dispela i min olsem mak bilong stretpela -lain longwe long namel bilong 'robotic arm base' i go long 'tool flange', we i makim gutpela wok envelop. Wok eria bilong en i no wanpela 'regular sphere'; ol 'blind zone' i stap antap na aninit long 'base', na 'joint mobility' i no gutpela tumas long ol hap klostu long 'base'.

Ol stia tok bilong makim ol model

Noken makim wanpela model bihainim mak bilong mak bilong en tasol. Sekim wok envelop wantaim ol ples bilong kisim-na-ples, 'tooling layout', na ol 'inlet/outlet' poin bilong ol samting. Ol 'end tooling' inap long skruim wok radius, tasol ol 'joint rotation angles' bai daunim gutpela 'operating range'. Longpela rot i makim olsem 'payload capacity' i liklik na bikpela 'floor footprint' bilong yunit, long wanem, ol dispela samting i pasim narapela narapela.

3. Ripitim Posisen Stret vs Absolut Posisen Stret

Ripitim Posisen Ekyuresi

Konsistensi bilong wanpela han bilong robot i save go bek planti taim long ol mak we ol i bin lainim long han, planti taim ±0.0X mm. Em i wanpela ki promosen paramita we ol manifakta i save soim na em i gutpela long planti operesen senario wantaim ol 'fixed motion trajectories'.

Stretpela Posisen

Stretpela bilong han bilong wanpela robot we i kamap long ol 'coordinates' we ol i no lainim yet we i kamap long ol piksa bilong CAD, oflain programing sofwet o ol 'vision system'. Dispela 'accuracy value' i liklik tru long 'repeat positioning accuracy' na i no save stap long ol spesifikesen bilong prodak. Em i wok olsem wanpela bikpela samting bilong 'offline programming', 'vision integration' na 'robot interchangeability' aplikesen.

Tingting kranki we planti manmeri i save kisim

Tupela 'metrics' i no inap senis. Bikpela 'repeat positioning accuracy' i no inap long makim bikpela 'absolute positioning accuracy'.

4. Taim bilong raun / spit bilong wok

Dispela paramita i soim 'theoretical production capacity' bilong ol ikwipmen na i makim 'index' we i gutpela tru long ol 'product specifications'. Ol i save skelim taim bilong saikel na mak bilong spit we ol kampani i wokim aninit long ol standet opereting kondisen we i gat sotpela raun, ol liklik peilod na ol gutpela paramita, we i no inap long wankain olsem ol prodaksen envairomen bilong wol.

Taim bilong saikel tru i save senis long hevi bilong 'payload', 'travel distance', ol 'intermediate waypoints', na taim bilong 'process dwell' (long givim, weldim, 'precision alignment buffering'). Riel prodaksen autput i save stap daunbilo long mak bilong mak. Ol tes data o simulesen risal we ol i skelim bai stap insait long ol bikpela prodaksen senario.

5. Digri bilong Fridom (DOF) / Namba bilong ol Eks

Em i makim namba bilong ol join we i ken muv long han bilong robot, we i makim 'flexibility' bilong wok posisen bilong 'end effector':

1. 4-axis robots (SCARA robots, planti palletizing robots): I gat bikpela spit na strong, wantaim ol 'end effectors' we inap long mekim wok stret tasol. Em i gutpela long ol wok bilong kisim - na putim, putim long ol 'pallet' na ol wok bilong bungim ol samting.

2. 6-axis robotic arms: Yu ken stretim ol posisen long olgeta angle, na dispela i mekim na yu inap long putim ol wokpis. Em i gutpela long weldim, bungim planti samting, na masin i putim/rausim ol wokpis we i no gat wankain seip.

3. 7-axis redundant robotic arms: Em inap long abrusim ol samting we i pasim rot bilong ikwipmen na holim gutpela 'end-effector postures maski em i stap long ol liklik wokstesen, na em i gutpela long ol wok kondisen we i no gat planti spes.

Seleksen Prinsipel: Setim ol 'axes' bihainim laik bilong yu. Ol 'high-spec multi-axis models i no nid long ol simpol planar aplikesen long abrusim ol kos ekspendisa we i no nid.

Ol spesifikesen pepa i gat mining tasol taim ol i stret wantaim ol wok bilong kamapim ol samting. Wanpela 'repeatability' bilong ±0.05 mm, em i wanpela bikpela samting bilong weldim, i no gat as bilong en long ol 400-ton 'stamping lines', we taim bilong muv na 'floor footprint' i save kamap pastaim.

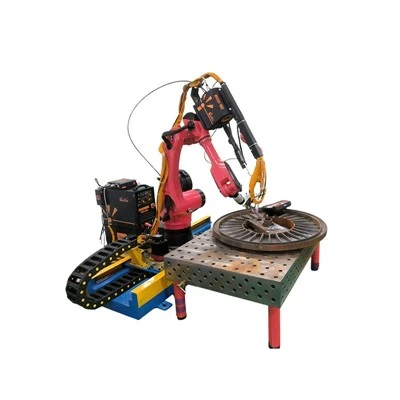

1. Weldim: Yu mas makim ol robot bihainim rot bilong weldim na i no long 'payload'

Arc welding i save dipen long stretpela rot bilong bihainim. Ol 'weld seam' i save ben, sanap stret, o i go insait tru long ol samting. Dispela 'welding torch' i mas holim wankain 'standoff distance' na 'travel angle', long wanem, 'molten weld pool' i save kisim planti liklik senis. Ol 'torch' na ol 'cable' bilong en i gat hevi bilong sampela kilogram tasol, olsem na 'payload' em i no nambawan samting. Ol bikpela samting yu mas i gat em long mekim wok i go het gut, wanpela liklik na strongpela han, na inap long wok gut. Solusen we ol i rekomendim em i wanpela 6-aksis artikulated robot wantaim 6-20 kg pelod, i gat ol 'seam tracking' o 'through-arc sensing' sistem na wanpela kontrola we i mekim gutpela 'motion interpolation'.

2. Pentim na givim ol glu: Putim Yunifom Koting i go pas long Spit bilong Spreim

Tupela standet i mas kamap long ol robot bilong penim: ful eksplosen-pruf konstraksen na wankain tiknes bilong koting. Ol 'paint booth' i gat ol 'solvent mist' we i save paia, na dispela i mekim ol 'standard robotic han' i kamap olsem wanpela bikpela hevi bilong paia. Sprei gan i mas holim wankain distens, angul na spit bilong raun; muvmen i no wankain i save kamapim ol hevi olsem 'sagging', ol 'bare patches' na 'orange peel texture'. Ol 'hollow through-arm wrists i go insait long 'paint' na 'air hose' bilong abrusim paip i bagarapim 'spray pattern'. Ol 6-aksis robot we i no hevi tumas na i no inap pairap na i no inap long pairap em ol i gutpela tru, ol i gat ful IP proteksen long 'overspray' na ol i gutpela long ron gut na i no ken karim hevi pailod.

3. Palletizing & Depalletising: Makim ol Robot long Payload, Reach na Cycle Time

I no gat nid long mekim 'palletizing' i gat bikpela 'precision'. Seleksen bilong model i dipen long tripela samting: 'payload', 'working radius' na 'cycle speed'. Ol standet katon i gat hevi bilong 15-50 kg, na ol robot i mas karamapim ful eria bilong putim ol palet. Wanpela 'pallet' we i stap 2 mita antap i nidim samting olsem 3 mita bilong kisim, wantaim autput we ol i skelim long ol katon long wan wan minit. 4-axis palletizing robot i save givim gutpela wok. Ol 'vertical wrist' bilong ol i save rausim ol 'redundant axes', na i save salim olgeta pawa bilong 'motor' i go insait long 'load capacity' na 'wide reach' bilong mekim gutpela kos.
